Good Conductivity Brass Wire Mesh In Automotive And Aerospace Sectors

Standard Packaging:	Verpackt mit wasserdichtem Papier oder Websack, in Paletten oder Holzkoffer.
Delivery Period:	7 Tage
Zahlungs-Methode:	T/T,D/P
Supply Capacity:	30 Tonnen pro Tag

Detail-Informationen

Produkt-Beschreibung

Ausführliche Information

Herkunftsort

China

Markenname

Senphus

Zertifizierung

ISO9001

Ort oder Ursprung:

China

Material:

Kupferdraht

Gesponnene Art:

Gewebe aus einfachen Stoffen

Maschen:

6 bis 60 Maschen

Durchmesser:

0.7-0.05 mm

Rollenbreite:

0.6-1.3mm

Rollenlänge:

10-100M

Verpackung Informationen:

Kraftpapier im Inneren, Kunststoffstoffstoff im Außen, in Holzpaletten oder -behälter

Gebrauch:

EMI/RFI Schirmung und elektrische Produkte

Hervorheben:

Automotive Brass Wire Mesh

Aerospace Brass Wire Mesh

Good Conductivity Brass Wire Mesh

Produkt-Beschreibung

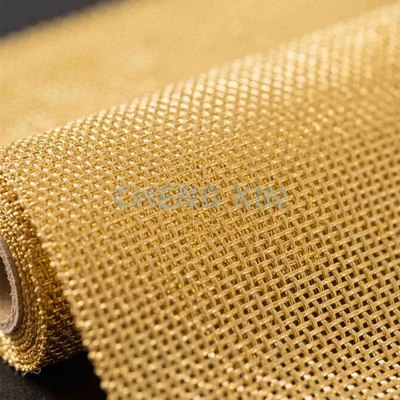

Brass Wire Mesh With Good Conductivity In Automotive And Aerospace Sectors

Brass wire mesh is a woven screen made from an alloy of copper and zinc, known for its distinctive yellow-gold color and excellent balance of strength and corrosion resistance. It offers good conductivity and moderate resistance to tarnish, making it versatile in various industrial and decorative applications. It’s commonly used for insect screens, filtration, sieving, and as a decorative element in architecture and crafts. Its malleability allows for easy shaping and fabrication. Brass mesh is also popular in the automotive and aerospace sectors, where it’s employed in radiator grilles, vents, and protective covers. Additionally, it serves as a non-sparking screen in hazardous environments, ensuring safety in potentially explosive settings.

Good Conductivity Brass Wire Mesh In Automotive And Aerospace Sectors 0

Technical data:

1 Technical requirements for weaved nickel mesh

1.1 Technical requirements for nickel wire

a. Chemical composition Nickel content >99.5%.

b. Diameter tolerance of nickel wire ±0.005mm

c. Nickel wire tensile strength >400Mpa, elongation >25%

1.2 Mesh size and mesh uniformity of nickel mesh conform to GB/T 17492

1.3 The allowable number of major defects of nickel mesh (holes, cracks, half weft, thin and dense channels, skip wire, loose weft/warp wire, warp loose channels) zero defect.

1.4 The maximum deviation of the overall size of the mesh is ±0.5%

1.5 The flatness of mesh is less than 5mm/2.5m

Dimensions and tolerance

Dimensions	≥0.03-0.1	≥0.1-0.3	≥0.3-0.6	≥0.6-1.0	≥1.0-3.0	≥3.0-6.0
Tolerance	±0.002	±0.002	±0.005	±0.007	±0.008	±0.02

Mechanical properties

Dimensions	Condition	Elongation(L0=100mm)	Tensile strength (MPa)
0.03-0.1	M	≥20	≥400
0.11-0.2	M	≥20	≥400
0.21-0.48	M	≥30	≥400

Brass Wire Mesh: Key Features

✅ Excellent Corrosion Resistance
Performs well in non-oxidizing, dry environments; moderately resistant to corrosion.

✅ Distinctive Appearance
Attractive yellow-gold color, popular for decorative uses.

✅ Good Electrical and Thermal Conductivity
Suitable for applications requiring electrical or heat transfer.

✅ Malleability and Ductility
Easily formed into various shapes for customized applications.

✅ Moderate Strength
Balances strength and flexibility, making it durable yet workable.

✅ Non-Magnetic and Non-Sparking
Ideal for use in sensitive electronic equipment and explosive environments.

✅ Versatile Weave Options
Available in various mesh sizes and patterns for filtration, sieving, and screening.

Brass Wire Mesh Applications

1. Decorative and Architectural
Used in building facades, interior design, and art installations for its attractive appearance.

2. Insect Screens
Provides effective protection against insects while allowing air and light to pass through.

3. Filtration and Sieving
Employed in chemical, mining, and food industries to separate and filter particles.

4. Electrical and Electronics
Applied in EMI shielding and grounding due to its moderate conductivity.

5. Safety and Anti-Spark Screens
Ideal for use in potentially explosive or flammable environments.

6. Automotive and Aerospace
Used in radiator grilles, vents, and protective covers.

7. Industrial Applications
Serves as a protective screen or support in machinery and equipment.

Woven Brass Wire Mesh Screen Specification

Mesh	Wire Dia.(mm)			Opening (mm)
	SWG	MM	Inch
6	22	0.711	0.028	3.522
8	23	0.61	0.024	2.565
10	25	0.508	0.02	2.032
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.84
24	0	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.247	0.011	0.573
32	33	0.254	0.01	0.54
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.404
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60×50	36	0.193	0.0076
60×50	37	0.173	0.0068
60	37	0.173	0.0068	0.25

Hightop Metal Mesh manufactures two types of woven brass mesh screens:

Common brass – 65% copper and 35% zinc.
Red brass – 80% copper and 20% zinc

Good Conductivity Brass Wire Mesh In Automotive And Aerospace Sectors 1
